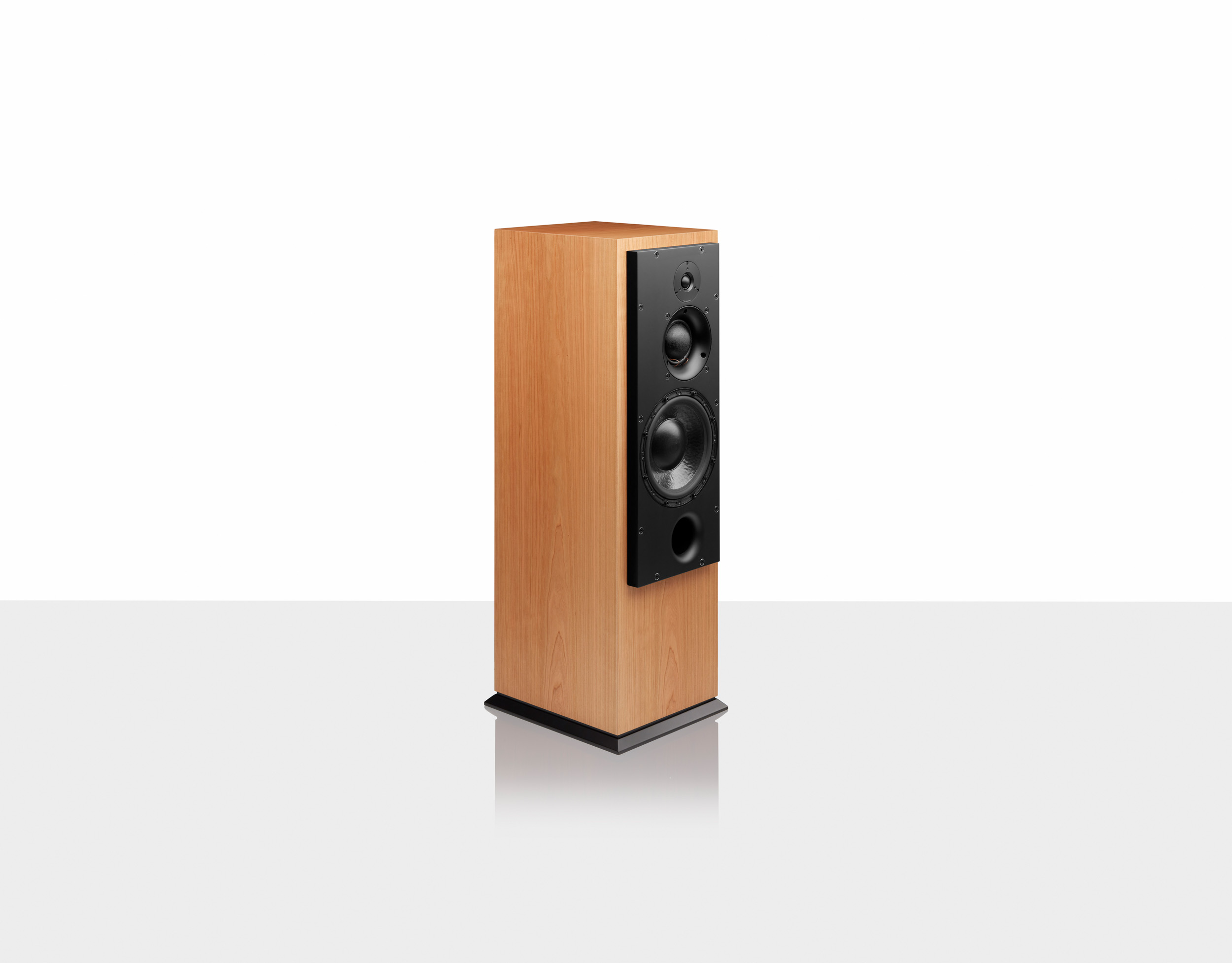

SCM50ASLT

Overview

  • Also available in passive version (SCM50PSLT)
  • ATC SM75-150 S Soft Dome Mid driver
  • Latest 234mm SL Spec Bass driver
  • Massive ATC motor assembly
  • Wide, even dispersion for pin-point imaging
  • 350 watt class AB tri-amp pack (active version)
  • Active filters and overload protection (active version)
  • 6 year warranty
  • Any veneer to order. Featured veneer: Rosewood

Specification

Active

Drivers: HF 25mm Neodymium, Mid 75mm ATC Soft Dome, LF 243mm SL
Frequency Response (±2dB):
70Hz–17kHz
Frequency Response (±6dB):
38Hz–22kHz
Matched Response:
±0.5dB
Dispersion:
±80° Coherent Horizontal, ±10° Coherent Vertical
Max SPL:
112dB
Crossover Frequencies:
380Hz & 3.5kHz
Connectors:
Male XLR
Filters:
Active – 4th Order Linkwitz-Riley, Passive – 2nd Order Linkwitz-Riley
Amplifier Output:
200w LF, 100w Mid, 50w HF (active version)
Cabinet Dimensions (HxWxD):
1003x304x470mm/39.5″x12″x18.5″
Weight:
53.3kg/117.5lbs

Passive

Drivers: HF 25mm Mid 75mm LF 234mm Super Linear
Amplitude Linearity ±2dB: 70Hz – 17kHz
Frequency Response -6dB: 40Hz & 22kHz
Matched Response: ±0.5dB
Dispersion: ±80° Coherent Horizontal ±10° Coherent Vertical
Sensitivity (sine wave): 85dB @ 1W @ 1m
Max continuous SPL @1m: 112dB SPL
Crossover Frequency: 380Hz & 3.5kHz
Input Connector: Binding Posts/4mm banana plugs
Recommended Power Amplifier: 100 to 1500 Watts
Nominal Impedance: 8 ohms
