SCM7

Overview

  • New ATC designed and built 25mm soft dome HF unit with precision alloy wave guide.

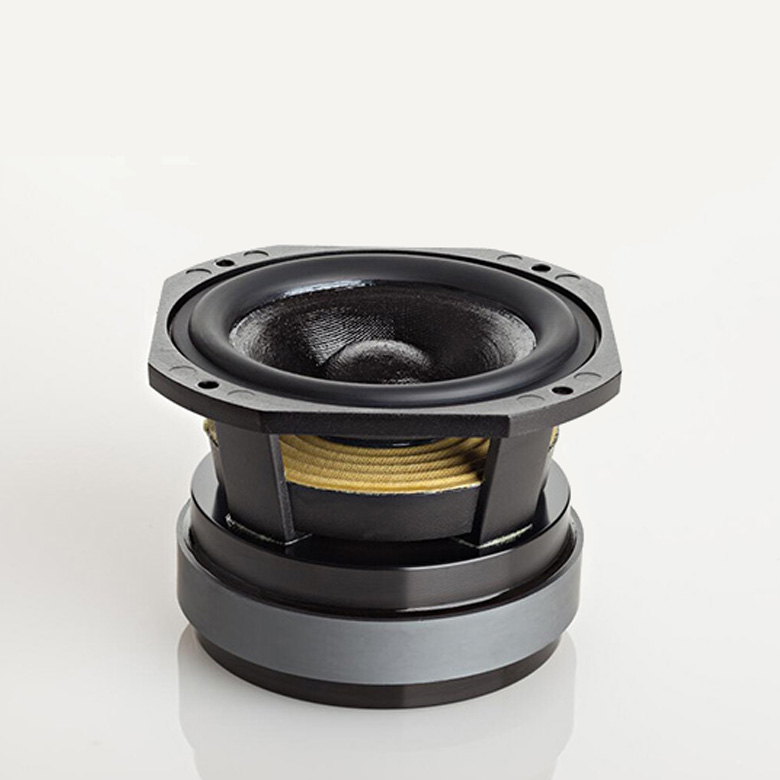

  • 125mm ATC mid/bass unit with integral soft dome.
  • In-house, hand-wound precision flat wire coil.
  • Massive optimised motor assembly.
  • Flat impedance curve allowing easy load for amplifiers.
  • 6 year warranty.

Specification

Drivers: HF ATC 25mm Neodymium Soft Dome, Mid/LF ATC 125mm SC
Matched Response: ±0.5dB
Frequency Response (-6dB): 60Hz-22kHz
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Sensitivity: 84dB @ 1W @ 1metre
Max SPL: 103dB
Recommended Power Amplifier: 75 to 300 Watts
Nominal Impedance: 8 Ohm
Crossover Frequency: 2.5kHz
Connectors: Binding Posts/4mm Plugs, bi-wire
Cabinet Dimensions (HxWxD): 300x174x215mm/11.8″x6.9″x8.5″ (grill adds 28mm/1.1″ depth)
Weight: 7.5kg/16.5lbs
