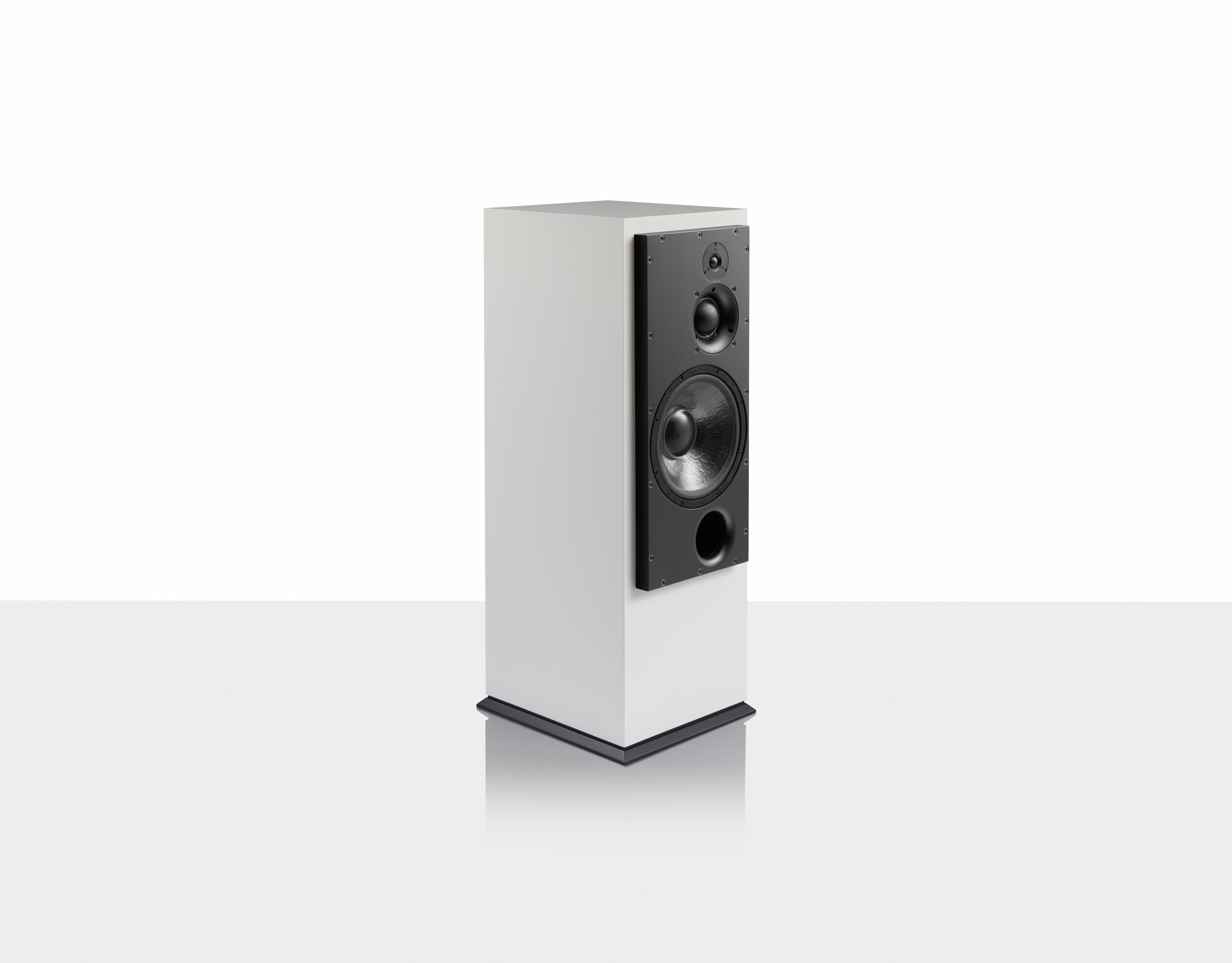

SCM100ASLT

Overview

  • Also available in passive version (SCM100PSLT)
  • ATC SM75-150 S Soft Dome Mid driver
  • Latest 314mm SL Spec Bass driver
  • Massive ATC motor assembly
  • Wide, even dispersion for pin-point imaging
  • 350 watt Class AB tri-amp pack (active version)
  • Active filters and overload protection (active version)
  • 6 year warranty
  • Any veneer to order.  Featured veneer: Yew.

Specification

Active

Drivers: HF 25mm Neodymium, Mid 75mm ATC Soft Dome, LF 314mm SL
Frequency Response (±2dB): 65Hz–17kHz
Frequency Response (±6dB): 32Hz–22kHz
Matched Response: ±0.5dB
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Max SPL: 115dB
Crossover Frequencies: 380Hz & 3.5kHz
Connectors: Male XLR
Filters: Active – 4th Order Linkwitz-Riley, Passive – 2nd Order linkwitz-Riley
Amplifier Output: 200w LF, 100w Mid, 50w HF (active version)
Cabinet Dimensions (HxWxD): 1070x397x560mm/42.1″x15.6″x22.05″
Weight: 68kg/150lbs

Passive

Drivers: HF 25mm Mid 75mm LF 314mm Super Linear
Amplitude Linearity ±2dB: 65Hz – 17kHz
Frequency Response -6dB: 35Hz & 22kHz
Matched Response: ±0.5dB
Dispersion: ±80° Coherent Horizontal ±10° Coherent Vertical
Sensitivity (sine wave): 88dB @ 1W @ 1m
Max continuous SPL @1m: 115dB SPL
Crossover Frequency: 380Hz & 3.5kHz
Input Connector: Binding Posts/4mm banana plugs
Recommended Power Amplifier: 100 to 1500 Watts
Nominal Impedance: 8 ohms
Cabinet Dimensions (HxWxD): 1070x397x560mm/42.1″x15.6″x22.05″
